Brand Name : | CAROZZA |
Model Number : | BDL-400 |
Certification : | CE |
Price : | USD |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 100 pcs/Month |
Delivery Time : | 10-15 days |

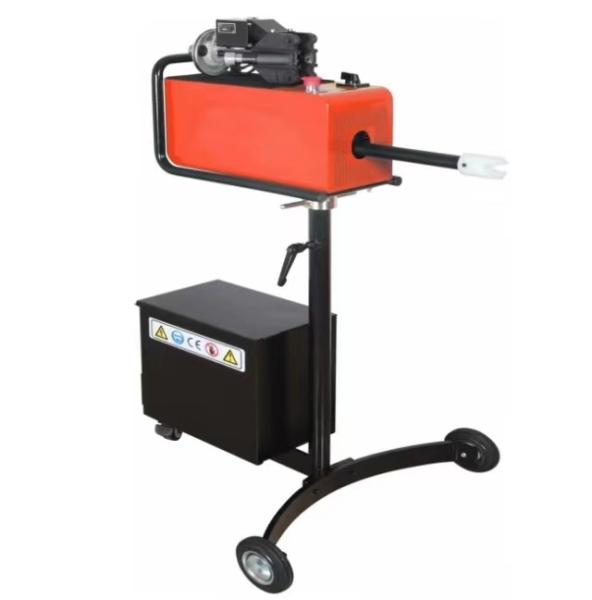

on car brake disc lathe brake lathe for car maintenance
The feature of brake lathe:
1.Basing on the actual axis of rotation,completely solve the
problem of brake pedal dithering,
brake disc rust,brake deviation and brake noise.
2.Eliminate the assembly error when disassembling and assembling
the brake disc.
3.On the car repair without the need of disassembing the brake
disc,save labor and time
4.Convenient for the technicians to compare the run-out tolerance
before and after cuting
brake disc.
5.Save cost,powerfuly shorten the repair time,and reduce client's
complaint.
6.Cut the brake disc when replacing the brake pads,assure the brake
effect,and prolong the service
life of brake disc and brake pads.
Why repairing brake drums?
Brake pedal dithering within the certain drive mileage after new car has driven for several hundred of miles or replacing new brake dise, the brake pump will push back caused by the run out tolerance of the brake disc end, which may cause periodical hydraulic push-back effect. Additionally, the internal stress of the brake disc will release caused by the high temperature from the pulse brake,and the brake pedal will dither and steering wheel will vibrate.
Rust and corrosion the brake dise will rust after the car is stored for a long period, Additionally.as a result of salt corrosion, the surface of brake disc will be rough and unsmooth, which mayinfluence the brake effect.
Brake deviation-caused by road dust, oil, brake scurf and basic
rust which may cause different fricrion coefficient coapared with
the original surface, therefore, the friction foree of two
wheelswill be different, and cause brake deviation and high noise.
Drum brake: strong braking foree but bad heat dispersion, when
long-time braking, the surface will be unsmooth due to the cast
iron drum material.
The main specifications of brake lathe:
Model | BDL-400 | Maximum Diameter Of Brake Disc | 400mm |
Working Height Min/Max | 1000/1250mm | Drive Speed | 98RPM |
Motor Power | 750W | Electrical Specifications | 220V/50Hz 110V/60Hz |
Thickness Of Brake Disc | 6-40mm | Cutting Depth Per Knob | 0.005-0.015mm |
Cutting Precision | ≤0.00-0.003mm | Brake Disc Surface Roughness Ra | 1.5-2.0μm |
Gross Weight | 75KG | Dimension | 1100×530×340mm |
![]() |
